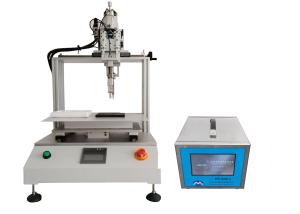

HF-800-2 Hot Air Cold Riveting Controller with 2 Channels for Simultaneous Riveting of 2 Points
The HF-800-2 Hot Air Cold Riveting Controller is equipped with the capability to accommodate two sets of rivet guns, enabling simultaneous riveting of two points. This substantial improvement in riveting efficiency makes it highly suitable for multi-point or multi-product riveting applications. Additionally, the implementation of hot air cold riveting technology minimizes the adhesion between the rivet heads and the components being riveted, thereby greatly prolonging the service life of the rivet heads.
Riveting is a widely used method for joining plastic components with other parts, offering advantages such as reduced reliance on consumables like adhesives and screws, leading to improved environmental sustainability. Additionally, employing riveting as an assembly method facilitates the design of lightweight products.
The controller incorporates advanced PID closed-loop control algorithm technology, ensuring precise control over temperature and heating time during the riveting process. It offers real-time monitoring and feedback of the temperature curve, enabling easy adjustment of parameters to achieve optimal riveting outcomes. Additionally, the controller is equipped with an Ethernet communication interface, facilitating convenient parameter configuration and data retrieval.
The controller boasts the capacity to store up to 5 sets of programs, allowing seamless program switching when transitioning between riveting products without the need for parameter reconfiguration. Furthermore, it includes password authorization functionality in the parameter settings, safeguarding against unintended operations.
Specification Table for HF-800-2 Hot Air Cold Riveting Controller
| Model | HF-800-2 |
| Rated voltage | AC 200V~240V 50Hz |
| Rated power | 1600W |
| Output voltage | AC 220V |
| Heating temperature set range | 50~600℃ |
| Thermocouple type | Type K |
| Communication interface | Ethernet |
| Number of program groups | 5 groups |
| Heating temperature segment | 1 segment |
| Parameter password | Yes |
| Parameter display and setting | 7-inch true color touch screen |
| Controller weight | 8KG |
| Controller dimensions | 243mm x 213mm x 183mm |
| Attention: Parameter changes caused by product upgrades or other factors will not be notified separately. The physical product shall prevail. Hereby declared! |
Hot Air Cold Riveting Process
| 1. Component assembly: Install the target components for assembly and position the hot air nozzle onto the plastic rivet. |  |
| 2.Heat treatment: Apply hot air using the nozzle to uniformly heat the entire plastic rivet. |  |
| 3. Softening and conditioning: Allow the plastic rivet to soften and reach a malleable state suitable for shaping. |  |
| 4. Cold air forming: Replace the hot air nozzle with a cold air staking head and apply downward pressure while simultaneously blowing cold air. |  |
| 5.Shaping completion: Once the cold air staking process is finished, the formed plastic rivet can be obtained. |  |
This product is widely utilized in the production and manufacturing of industries such as automotive, electronics, household appliances, and plastic products. The following are a collection of actual riveting result images.
Company Profile :
Established in 2009, SUZHOU MEIHAO HEAT STAKING TECHNOLOGY CO.,LTD. is a professional company engaged in the research, development, production, sales, and service of plastic heat staking equipment. With over 14 years of industry experience, we are committed to providing high-quality heat staking equipment to our customers. Our products have gained significant market share domestically and are exported to multiple countries worldwide.
Our primary product lines include pulse plastic heat staking equipment, plastic hot air cold staking equipment, and pulse heat press welding equipment. These equipment are widely utilized in industries such as automotive, electronics, and household appliances. With a professional R&D team, we prioritize technological innovation and product optimization within the industry. We continuously innovate and improve our equipment to meet the evolving needs of our customers.
If you require a custom-made product, please contact us first to obtain detailed information.
FAQ:
Q1: What are your competitive advantages?
A1: With over 14 years of experience, we are industry leaders in various aspects. Additionally, we are direct manufacturers for all our products, ensuring that you can purchase the products you need at the most competitive prices.
Q2: How do you ensure product quality?
A2: For exclusive and customized designs, we first produce samples for testing, ensuring that they meet customer satisfaction before proceeding to mass production. All products undergo strict testing procedures and are only packaged and shipped after passing quality assessments.
Q3: What post-sales services do you offer?
A3: Upon receiving the products, our dedicated team of professionals provides remote assistance to guide you through the installation and utilization of our products.
If you have any requirements or inquiries regarding our products or services, please feel free to contact us. We look forward to collaborating with you to create a bright future together.
